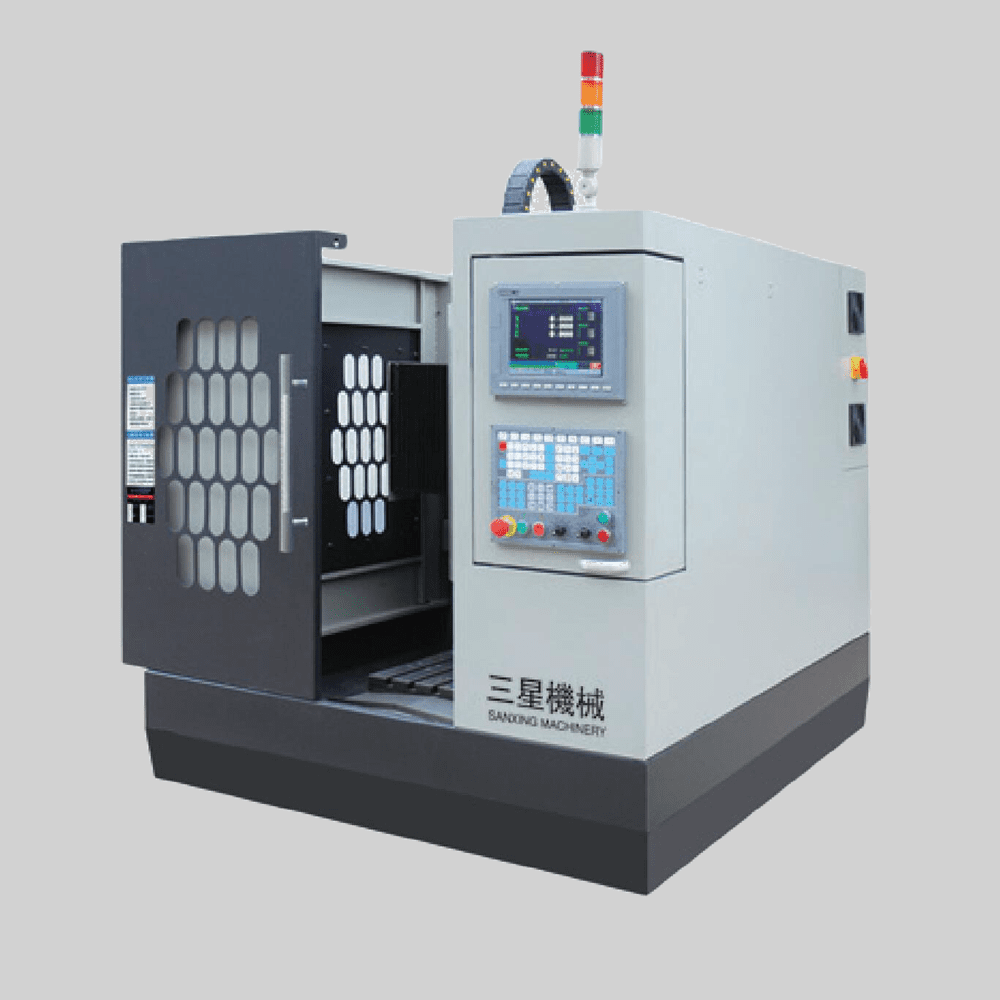

CNC Engraving Machine DK5040

Machine Type: CNC Engraving Machine/ Metal Engraver
Function: Engraving, Milling & Drilling / High Speed
Model: SXDK Series
Brand: Sanxing Machinery
Condition: Brand New
CNC Or Not: CNC
Place of Origin: Jiangsu, China
Payment: TT / LC
MOQ: 1 SET

Sanxing Machine High Speed CNC Engraving Machine / CNC Engraver is the multifunctional CNC machine integrating engraving, milling and drilling. With fast rotation speed, low working noise and high control accuracy,  it is widely used in various mold making, such as the plastic mold, stamping mold, die-casting mold, shoe mold and other metal or non-metal parts.

High Speed CNC Engraving Machine which is also called CNC Milling Engraving machine or CNC Engraver, looks like a small one milling machine. It has a very wide range of applications and can be applied to various fields and industries, and is suitable for engraving and cutting of various materials (except for materials with low melting points).

FEATURES OF HIGH SPEED CNC ENGRAVING MACHINE DK5040

A. Fully Enclosed Cover
B. Controller Integrated
C. Servo Motors
D. Tool Magazine
E. With LNC control system, other control systems are optional.
F. Automatic Lubrication System
G. Oil Cooling System

TECHNICAL DATA OF HIGH SPEED CNC ENGRAVING MACHINE DK5040

Specification Unit SXDK5040
Max. Engraving Size mm 500x400x220
Table Size mm 500×400
Max. Dry Running Speed mm/min 15000
Power of Spindle Motor kw 3
Max. Spindle Speed r/min 21000 (24000 Optional)
Max. Tool Diameter mm 3-12
Power of Spindle kw 7
Drive Motor Japan/Taiwan servo motor optional
CNC Control System SYNTEC, LNC optional
Table Loading Weight kg 300
Machine Weight T 2.3

High Speed CNC Engraving Machine / CNC Engraver - Sanxing Machinery sxwedm.com

PRODUCT DETAILS OF HIGH SPEED CNC ENGRAVING MACHINE DK5040

High Speed CNC Engraving Machine / CNC Engraver - Sanxing Machinery sxwedm.com

CNC Engraving Machine / High Speed CNC Engraver - Sanxing Machinery sxwedm.com


OPTIONAL

1. Model: From DK3020-DK200150
2. Different Tool Magazine Optional
3. Rotation worktable Optional
4. Different Speed of Spindle Optional
5. Different Control System Optional

DELIVERY TIME

  • 40~55 days after order confirmation

WARRANTY

  • One year

During the warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ

Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, max table loading weight, type of tool magazine, control system and your special requirement.

Specification Unit SXDK5040
Max. Engraving Size mm 500x400x220
Table Size mm 500×400
Max. Dry Running Speed mm/min 15000
Power of Spindle Motor kw 3
Max. Spindle Speed r/min 21000 (24000 Optional)
Max. Tool Diameter mm 3-12
Power of Spindle kw 7
Drive Motor Japan/Taiwan servo motor optional
CNC Control System SYNTEC, LNC optional
Table Loading Weight kg 300
Machine Weight T 2.3

ENGRAVING SAMPLES

CNC Engraving Machine / High Speed CNC Engraver - Sanxing Machinery sxwedm.com

High Speed CNC Engraving Machine / CNC Engraver - Sanxing Machinery sxwedm.com

Packaging:
Standard Seaworthy Packing : Wooden Case
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.

Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
