CNC Medium Speed Wire Cut Machine, also called multi cutting EDM machine or middle speed EDM wire cut machine, is a new generation of CNC Wire Cut machine. Compared to the high speed Wire Cut EDM machine, it has a higher machining precision and a faster machining speed, so it is more suitable for cutting high-precision and super-hard materials such as electrodes of a EDM machine, stamping dies, etc.
Sanxing Machinery CNC Wire Cut machine CA Model Eco-friendly which is designed and produced with our unique patents, uses the separated controller to have a the same cutting accuracy and surface roughness as CB model, but with a much lower price than CB or CT Model.

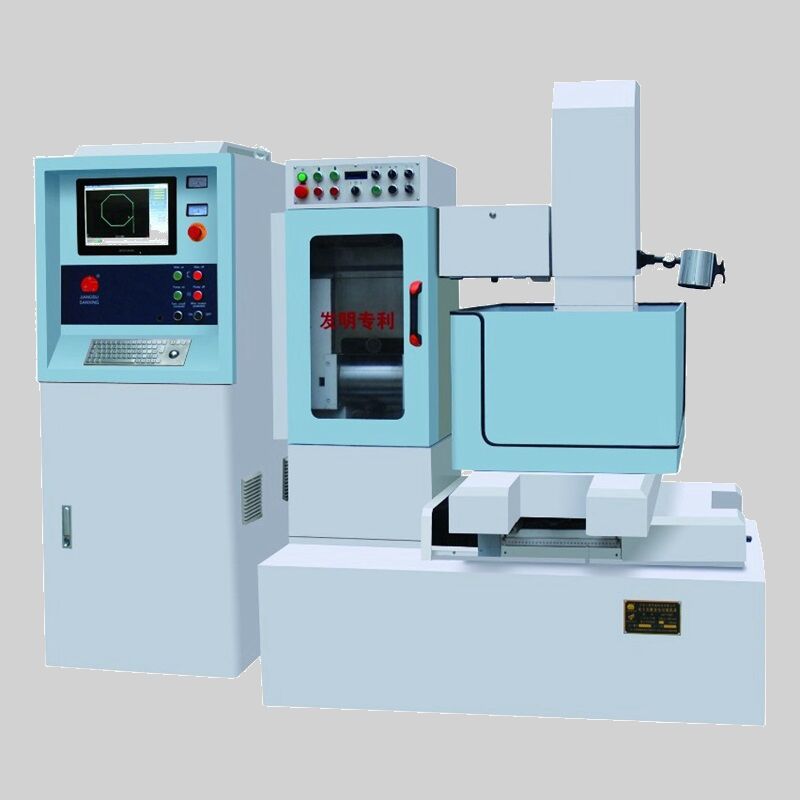

FEATURES OF CNC MEDIUM SPEED WIRE CUT MACHINE – DK7732CA
A. Semi Enclosed Cover
B. Section Cutting (Patent: ZL200810021761.X)
C. Fixed Wire Drum (Patent: No.200710019393.0)
D. Autocut Software + Windows Operation System
E. Controller Separated Type
F. Linear Guideway Made By Taiwan, China or Equal
G. Central lubrication system
H. Industrial Use Computer or Brand Computer
I. Auto Wire Tension Tool
J. Special Abrasive Nozzle
TECHNICAL DATA OF CNC MEDIUM SPEED WIRE CUT MACHINE – DK7732CA
|Max. Workpiece Thickness||mm||200|
|Standard Workpiece Accuracy||mm||≤0.01|
|Best Surface Roughness||μm||≤1.0|
|Max. Cutting Speed||mm2/min||160|
|Wire Running Speed||m/s||5-11.5|
|Taper||°/mm||6°/100(Bigger Tapers Optional)|
|Power Input||V/Hz||3 phase 380V/50Hz or 220V/60Hz or 415V/50Hz|
|Cutting Liquid||Special fluid for multi-cutting|
1. Model: from DK7732CA To DK77120CA
2. Bigger Taper Optional
3. High Thickness Optional
4. Touch Screen Monitor Optional
5. Different Power input Optional
6. Aluminium Cutting Equipment Optional
COMPARSION OF ALL THE CNC WIRE CUT MACHINE FROM SANXING MACHINERY
- 15 days after order confirmation
- One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry around 30 years.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.
Q: What information will you need to make the proposal?
A: Such as the Worktable size, worktable travel, surface finish, machining accuracy, and your special requirements.
