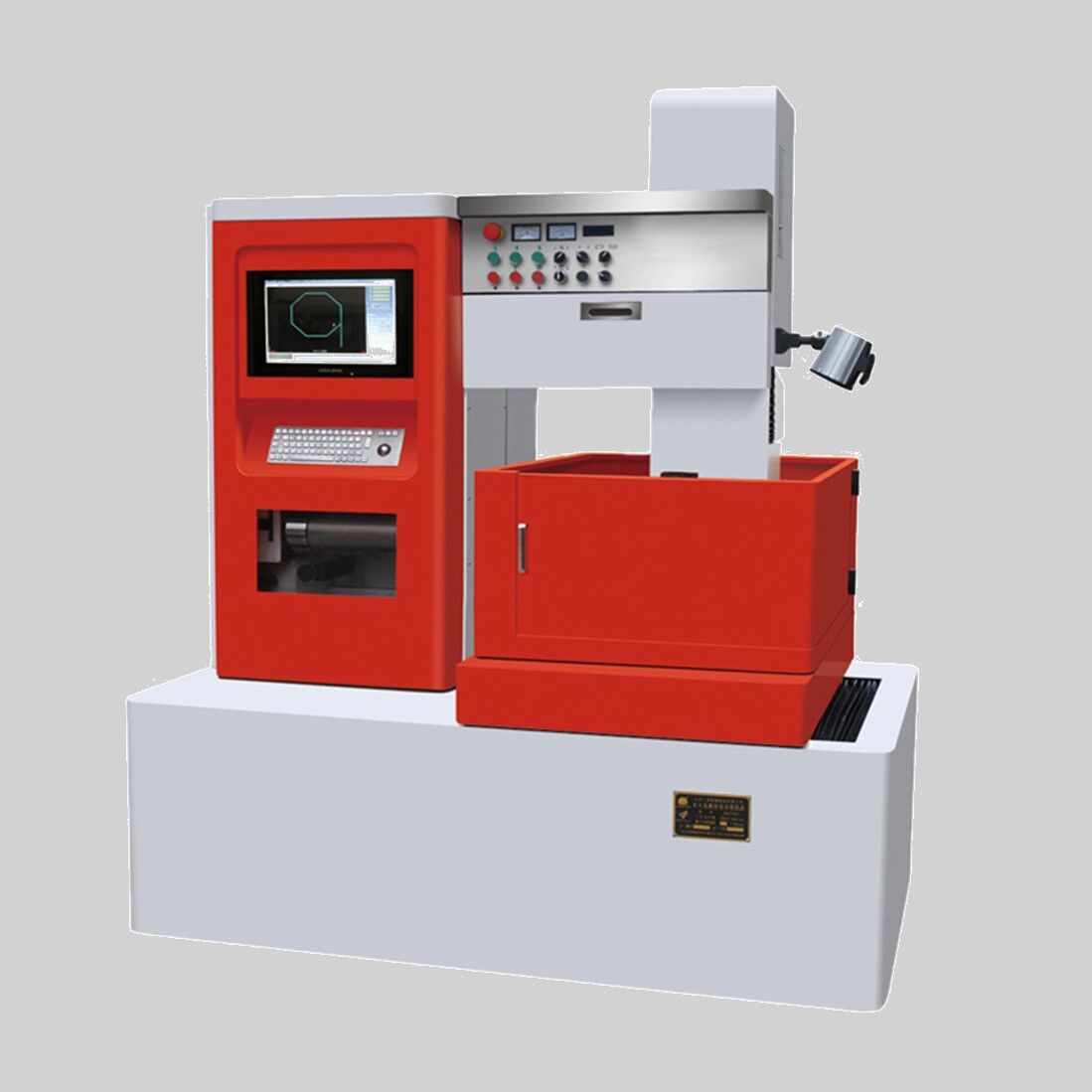

CNC Medium Speed EDM Wire Cut Machine DK7740CB

Machine Type: Wire Cut EDM / MS-WEDM / Wire EDM
Function: Mo Wire Multi-cutting / Medium Speed
Unique Features: Controller Integrated, Semi Enclosed Cover
Brand: Sanxing Machinery
Model: DK77CB Series
Condition: Brand New
CNC or not: CNC
Place of Origin: Jiangsu, China
Payment: TT / LC
MOQ: 1 SET

CNC Medium Speed EDM Wire Cut Machine, also called CNC multi cutting Wire EDM, is a new generation of CNC Wire Cut EDM machine. Compared to the high speed EDM CNC Wire Cut machine, Sanxing Medium Speed CNC Wire EDM has a higher machining precision and a faster machining speed, so it would be more suitable for cutting high-precision and super-hard materials such as electrodes of a Die Sinking EDM machine, stamping dies, and etc.

Sanxing Machinery CB Model is the controller integrated type, and also with the semi enclosed cover. But its cover is different from fully enclosed cover of CT model. It is also designed and produced with our unique patents. Compared to CT model, CB Model uses the Stepper Motors instead of Servo Motors to have a closely cutting accuracy and surface roughness,  but with a much lower price, but the servo motors are optional. They are suit to cut the workpiece of high precision, fairly good rigidity and high toughness.

FEATURES OF CNC MEDIUM SPEED EDM WIRE CUT MACHINE – DK7740CB

A. Semi Enclosed Cover
B. Section Cutting (Patent: ZL200810021761.X)
C. Fixed Wire Drum (Patent: No.200710019393.0)
D. Autocut Software + Windows Operation System
E. Unique integrated Type: Controller combined in the machine body
F. Linear Guideway Made By Taiwan, China or Equal
G. Central lubrication system
H. Industrial Use Computer or Brand Computer
I. Auto Wire Tension Tool
J. Special Abrasive Nozzle

TECHNICAL DATA OF CNC MEDIUM SPEED EDM WIRE CUT MACHINE – DK7740CB

Type Unit DK7740CB
Worktable Size mm 750×460
Table Travel mm 500×400
Max. Workpiece Thickness mm 200
Standard Workpiece Accuracy mm ≤0.008
Best Surface Roughness μm ≤1.0
Max. Cutting Speed mm2/min 180
Wire Running Speed m/s 5-11.5
Taper °/mm 6°/100(Bigger Tapers Optional)
Power Input V/Hz 3 phase 380V/50Hz or 220V/60Hz or 415V/50Hz
Overall Power KVA 2.6
Cutting Liquid Special fluid for multi-cutting

PRODUCT DETAILS OF CNC MEDIUM SPEED EDM WIRE CUT MACHINE – DK7732CB

Product Details of Medium Speed CNC Wire Cut EDM / CNC Wire Cut EDM - Sanxing Machinery

OPTIONAL

1. Model: from DK7732CB To DK77120CB
2. Bigger Taper Optional
3. High Thickness Optional
4. Touch Screen Monitor Optional
5. Different Power input Optional
6. Aluminium Cutting Equipment Optional

COMPARSION OF ALL THE CNC WIRE CUT MACHINE FROM SANXING MACHINERY

Comparision of EDM CNC Wire Cut Machine / CNC Wire Cut EDM Machine - Sanxing Machinery

DELIVERY TIME

  • 15 days after order confirmation

WARRANTY

  • One year

During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ

Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.

Keywords: CNC Wire Cut Machine, CNC Wire Cutting Machine, CNC Wire Cutter, CNC Wire Cut EDM, CNC Wire Cut EDM Machine, CNC Mo Wire EDM, Wire EDM, Wire EDM Machine, EDM Cut Machine, EDM Wire Cut Machine, Medium Speed Wire Cut EDM, Medium Speed Wire Cut Machine, Middle Speed Wire Cut EDM Machine, Multi Cutting EDM Machine,Controller Integrated Type Cut Machine, Semi Enclosed Wire Cut Machine, DK7740CB, Machine Tool, Wire Electrical Discharge Machining Machine, Wire Cut Electrical Discharge Machining Machine, Servo Control Wire Cut EDM, DK77CB Series…
Type Unit DK7732CB
Worktable Size mm 650×400
Table Travel mm 400×320
Max. Workpiece Thickness mm 200
Standard Workpiece Accuracy mm ≤0.008
Best Surface Roughness μm ≤1.0
Max. Cutting Speed mm2/min 180
Wire Running Speed m/s 5-11.5
Taper °/mm 6°/100(Bigger Tapers Optional)
Power Input V/Hz 3 phase 380V/50Hz or 220V/60Hz or 415V/50Hz
Overall Power KVA 2.6
Cutting Liquid Special fluid for multi-cutting

Autocut for CNC Wire Cut Machine Sanxing Machinery      Autocut software for CNC Wire Cut Machine - Sanxing Machinery

As show in above figure, AutuCUT is a whole integrated solution for wire cut EDM machining. AutoCUT system is consisted by AutoCUT software, PCI based drive card, and high stabile main board of stepper motor drive, and 0.5 microseconds medium speed wire cut EDM high frequency main vibration board. AutoCUT software includes AutoCAD embedded module and cutting control software.

Main function of AutoCUT:
1. Support graph drive automatic programming, there is no need for customers to touch codes, only need to set cutting technology to the graph for cutting; at the same time, it support 3B or G code list created by other wire cut EDM software, and simply read and process to do cutting.
2. Software is embedded in AutoCAD, CAXA and some other software, customers just need to know AutoCAD or other design software, easy to use and no need for special training of drawing.
3. Several machining pattern combined together in cutting(continuous, single segment, forward, backward, trace back and so on.).
4. XYUV four axes direction change is adjustable, drive motor could be set as 5 phase 10 beats or 3 phase 5 beats and so on.
5. Real time monitoring upon X, Y, U.V and cutting situation.
6. Machining preview, real time display of cutting process; 3D display and tracking of taper machining, zoom in and zoom out to view graph, front view, right view, top view and etc..
7. Capability of multi-time cutting with customer maintained data base of cutting parameters, make multi-time cutting much more easy and reliable.
8. Taping cutting adopts 4 axes simultaneous technology, can process up and down different shape cutting convenient.
9. Control board to drive 4 axes movement, work stably and reliably.
10. Support several cards work together in parallel , several wire cut EDM machine could be controlled by only one computer and do cutting at the same time.
11. With automatic alarm function, it will alarm when cutting is done or malfunction happens, time of alarming is settable.
12. Support angle clear time-delay, time delay when cutting angle of track, to make avoid impact of deviation caused by molybdenum wire.
13. Support compensation of teeth gap of screw to increase mechanical accuracy.
14. Support linear scale and closed- type with servo motors to increasing positioning accuracy of machine.
15. Support three different cutting pattern: normal high speed wire cut EDM machining, medium speed wire cut EDM coding output pattern and output pattern.
16. Power off memory function, cutting data backup after recover of power supply, re-track when short circuit happens and malfunction handling.
17. Automatic power off after machining is done.

Main features of AutoCUT system
1. It adopts graph drive technology, reduce work of man and increase working efficiency, and minimize error caused by workers.
2. Open to various version of WindowsXP, software is easy to learn and use.
3. Directly embedded in AutoCAD, CAXA and may other CAD software, to realize CAC/CAM combined smoothly to prolong cutting range.
4. Taper cutting; 4 axes simultaneous technology; 3D design and cutting track; compensation to diameter of guide, diameter of electrode wire, and big tap cutting.
5. Multi-cards work simultaneously is supported. It is possible to control many wire cut EDM machines with only one set computer, which has many pieces AutoCUt PCI card.
6. It has data base of cutting parameters which is editable by operators, who can save, edit and read cutting parameters according to different material, different thickness and different needed cutting performance.
7. AutoCUT can optimize processing of super thick workpiece(up to 1000mm) cutting, to make track stable and reliable.

DK77C SERIES CNC WIRE CUTTING EDM ADVANTAGES:

Clean and aesthetic appearance, Safety Operation.
Adopt new full closed cover, whose structure is much more simple and nice than the traditional separated machine.Meanwhile, the wire structure and the thread stand become one, which is better to make the wire route closed, so there’s no cutting fluid splashing on the machine body, as a result, the machine can keep clean for long time, easier to clean.

Creative invention, durable in use.
The bearing pedestal installing wire reel, base and machine body are rigidly connected, the wire drum doesn’t move right and left, only does front and back, the movement of thread stand right and left makes the wire stretch out and draw back, which makes the weight of the moving parts recuse to 1%of the traditional, lowers the vibration when machine works and the attrition between Transmission parts, as a result, highers the stability of the machine.

Section cutting, guaranteeing the accuracy.
The wire consumption mainly focuses on the large current and big pulse width of the rough process, the consumption in Semi-finishing process is 1/3 of the rough process, while, in precise process, it is below 0.001mm. During section cutting process, machine works for a long time, its wire surface in the precise process still can keep its roughness well and circle degree. Thus, this machine makes up the defect that the accuracy and surface roughness of the workpiece are lowered when the wire of the traditional medium speed machine works for a long time, our machine working effect can compare favourably with the cnc slow speed wire cutting EDM.

Easy operation.
The position of the operator and the wire drum changes from the vertical to the parallel, so, it’s much more convenient to thread wire and don’t need to move to the left of the machine to fix the wire.

Automatic tightening wire, improved effect.
The machine is installed with constant tension mechanism, so the wire tension stays the same during the whole process and don’t need to tighten wire manually as the traditional.

The cheapest and best, economical and practical.
The working cost of the cnc medium speed wire cutting EDM is only 1/6 of the slow speed cnc wire cutting EDM. Now our DK77C series wire cutting EDM adopts our“Cutting Method of the Reciprocating Wire Cutting EDM”, not only protects the advantages of”low price, low working cost”but has the advantages of high accuracy and good surface roughness.

Packaging:
Standard Seaworthy Packing : Wooden Case
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.

Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
