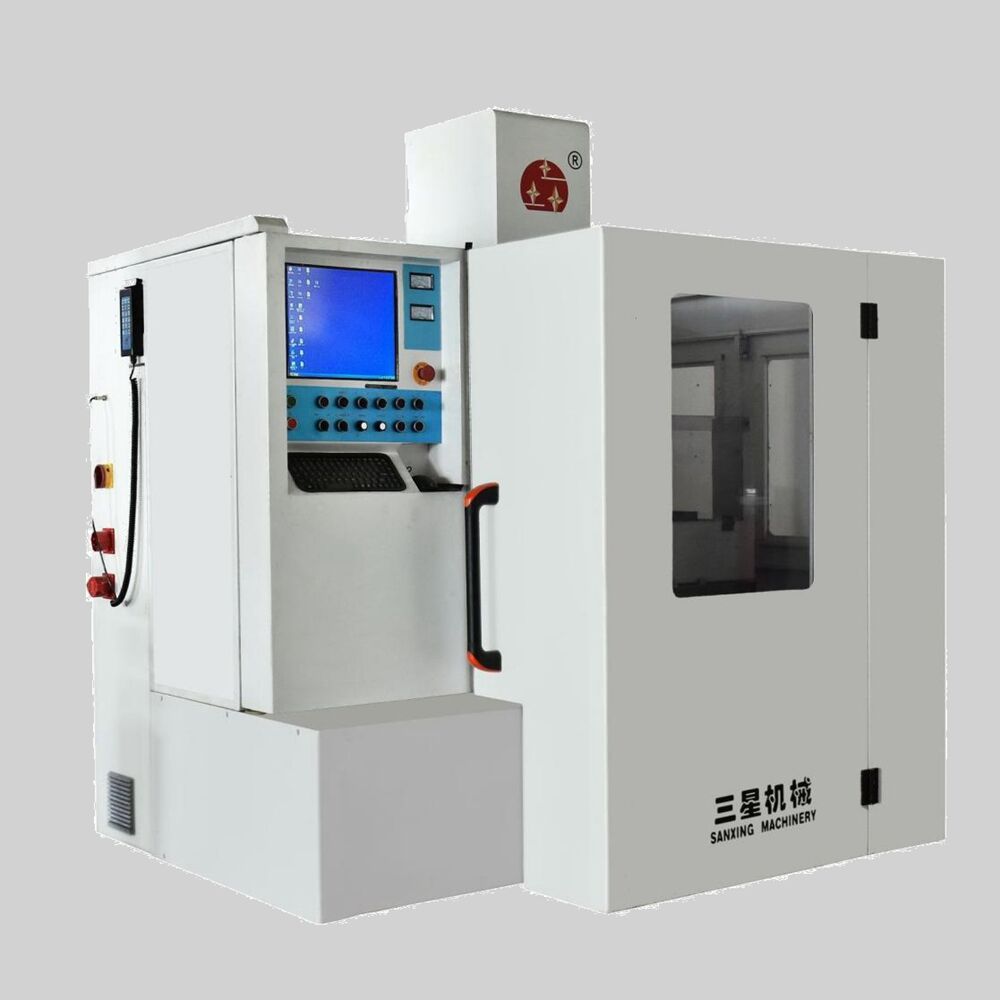

Sanxing Machinery Medium Speed CNC Wire Cut EDM Machine DK7740CT is all servo control molybdenum wire-cutting edm machine. With Sanxing Machinery’s special designs and the unique patents, it can have nearly the same cutting accuracy and finished surface roughness as the brass wire cut machine, but with a much lower running cost and higher cutting efficiency. Medium Speed CNC Wire Cut EDM Machine, also called CNC wire multi-cut machine edm, is a new generation of CNC Wire Cut machine. Compared to the high-speed machine, wire multi-cut machine edm has a higher precision machining and a faster machining speed, so it is more suitable for cutting high-precision and super-hard materials such as electrodes of a EDM machine, stamping dies, etc.
Pls be free to contact Sanxing Machinery to get the factory directly supplied price！
FEATURES OF MEDIUM SPEED CNC WIRE CUT EDM MACHINE – DK7740CT
A. Fully Enclosed Cover (ONLY CT model)
B. Section Cutting (Patent: ZL200810021761.X)
C. Fixed Wire Drum (Patent: No.200710019393.0)
D. CT Model With All Servo Motors
E. Autocut Software + Windows Operation System
F. Unique integrated Type: Controller combined in the machine body
G. Linear Guideway Made By Taiwan or Equal
H. Central lubrication system
I. Industrial Use Computer or Brand Computer
J. Auto Wire Tension Tool
K. Special Abrasive Nozzle
TECHNICAL DATA OF MEDIUM SPEED CNC WIRE CUT EDM MACHINE – DK7740CT
|Max. Workpiece Thickness||mm||200|
|Standard Workpiece Accuracy||mm||≤0.006|
|Best Surface Roughness||μm||≤0.8|
|Max. Cutting Speed||mm2/min||180|
|Wire Running Speed||m/s||5-11.5|
|Taper||°/mm||6°/100(Bigger Tapers Optional)|
|Power Input||V/Hz||3 phase 380V/50Hz or 220V/60Hz or 415V/50Hz|
|Cutting Liquid||Special fluid for multi-cutting|
1. Model: from DK7732CT To DK77120CT
2. Bigger Taper Optional
3. High Thickness Optional
4. Touch Screen Monitor Optional
5. Different Power input Optional
6. Cutting Euipment used for Aluminium Optional
- 15 days after order confirmation
- One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine , edm machine,cnc engraving machine, cnc milling machine and other machine tools and we have been in the industry around 30 years.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.
