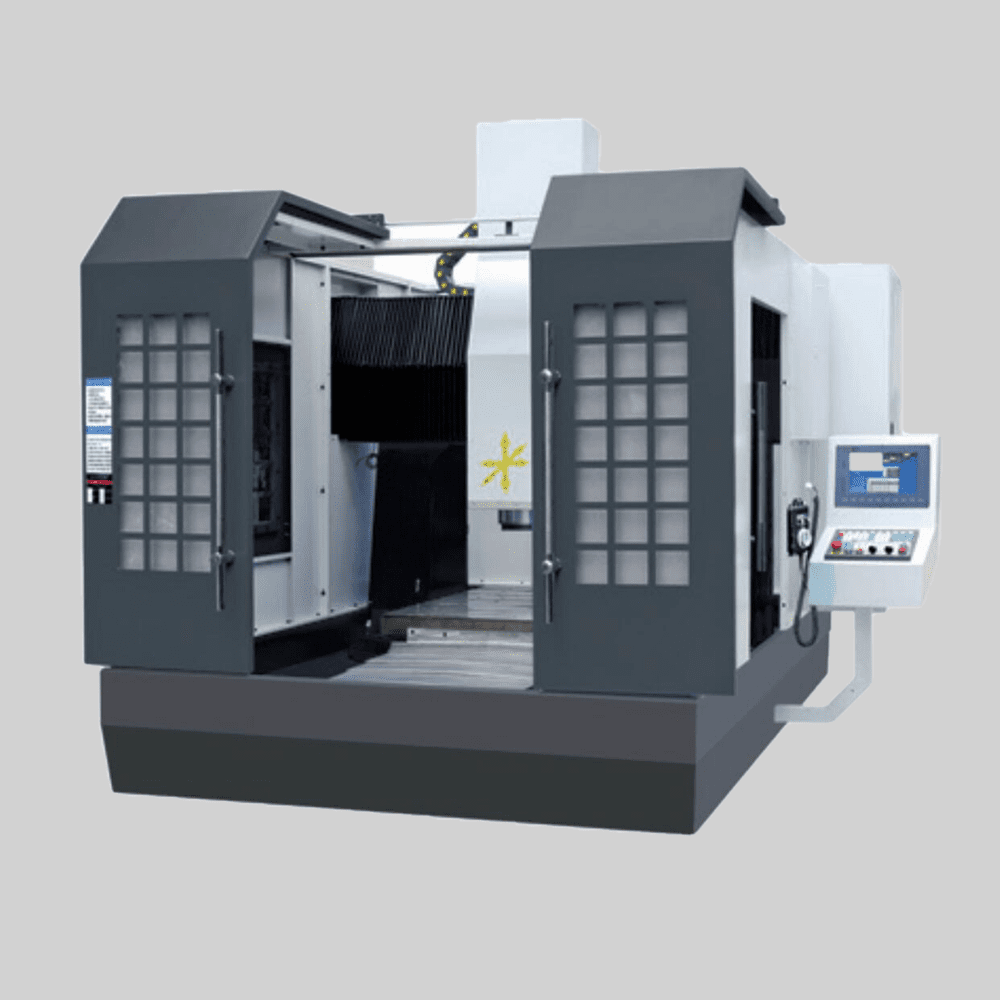

High Speed CNC Engraving Machine / CNC Engraver is the multifunctional CNC machine integrating engraving, milling and drilling. With fast rotation speed, low working noise and high control accuracy, it is widely used in various mold making, such as the plastic mold, stamping mold, die-casting mold, shoe mold and other metal or non-metal parts.
High Speed CNC Engraving Machine which is also called CNC Milling Engraving machine or CNC Engraver, looks like a small one milling machine. It has a very wide range of applications and can be applied to various fields and industries, and is suitable for engraving and cutting of various materials (except for materials with low melting points).
FEATURES OF HIGH SPEED CNC ENGRAVING MACHINE DK12090
A. Fully Enclosed Cover
B. Controller Integrated
C. Servo Motors
D. Tool Magazine
E. With LNC control system, other control systems are optional.
F. Automatic Lubrication System
G. Oil Cooling System
TECHNICAL DATA OF HIGH SPEED CNC ENGRAVING MACHINE DK12090
|Max. Engraving Size||mm||1200x900x500|
|Max. Dry Running Speed||mm/mir||15000|
|Power of Spindle Motor||kw||7.5 11 Optional|
|Max. Spindle Speed||r/min||15000 18000 Optional|
|Max. Tool Diameter||mm||3-20|
|Power of Spindle||kw||13|
|Drive Motor||Japan/Taiwan servo motor optional|
|CNC Control System||SYNTEC, LNC optional|
|Table Loading Weight||kg||2000|
PRODUCT DETAILS OF HIGH SPEED CNC ENGRAVING MACHINE DK12090
1. Model: From DK3020-DK200150
2. Different Tool Magazine Optional
3. Rotation worktable Optional
4. Different Speed of Spindle Optional
5. Different Control System Optional
- 40~55 days after order confirmation
- One year
During the warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry around 30 years.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, max table loading weight, type of tool magazine, control system and your special requirement.
